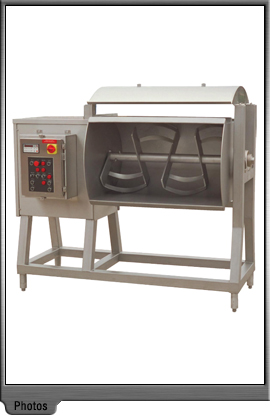

An all stainless steel mixer designed to mix ingredents with water prior to feeding to the sheeter. The volume of the mixer is 400 lbs (180kg) based on 200 lbs of flour (4 bags) and 200 lbs of water. The mixer is complete with a 7.5 hp drive motor, 25 rpm sigma blade mixing arm, power tilt mixing bowl, shaft seals, and heavy duty roller bearings on the mixer shaft. A complete control panel is installed and wired to control batch water addition, mixing time, and the tilt mechanism. Safety guards and covers prevent the mixer from operating with the cover open or the bowl tilted. Batch to batch time is 12 minutes.
